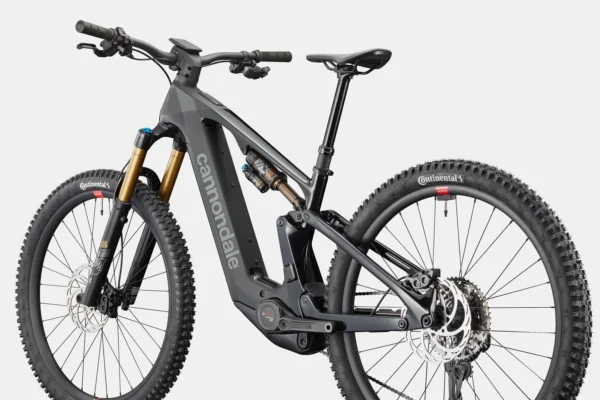

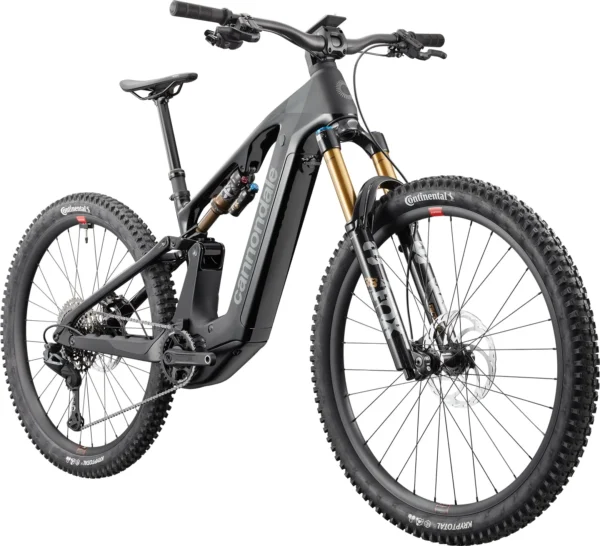

The Moterra 1 is Cannondale’s full-power carbon e-MTB, driven by a Bosch Performance Line CX motor and an 800Wh PowerTube battery. It runs 160mm of front and 150mm of rear travel on Fox Factory suspension, with Shimano XT Di2 shifting and Magura Gustav Elite four-piston brakes.
Specifications
| Brand | Cannondale |
| Model Name | Moterra 1 |
| Model Code | C6502GU |
| Platform | Moterra Neo |
| Frame | Moterra Carbon, 29″ wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5″ – 1.8″ tapered headtube, 40mm two-bolt kickstand compatible |
| Fork | Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset |
| Rear Shock | Fox Float X Factory, Kashima, 2 pos adj, EVOL LV, 230×62.5mm |
| Drive Unit | Bosch Performance Line CX |
| Battery | Bosch PowerTube, 800Wh |

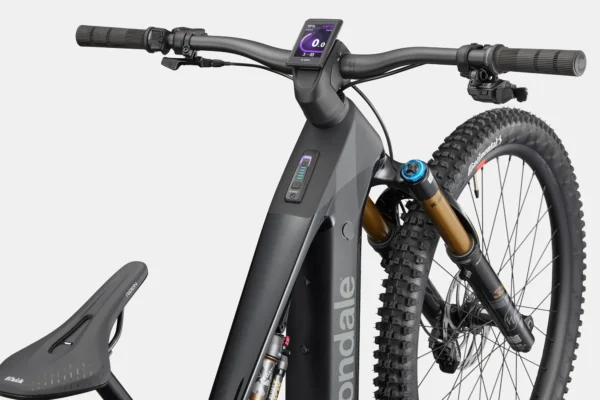

| Display | Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote |
| Charger | Bosch 4A |
| Rear Derailleur | Shimano XT Di2 M8260, 11-speed |
| Shifters | Shimano XT Di2 M8250, wireless, 11-speed |
| Brakes | Magura Gustav Elite 4-piston hydraulic disc, 203/203mm MDR-S rotors, 2.5mm |
| Rims | Reserve 30|HD AL, 30mm inner width, tubeless ready |
| Tires | (F) Continental Kryptotal-F, 29×2.4″, Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29×2.4″, Enduro Soft Black Foldable |
| Handlebar | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Stem | Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8″, 45mm, 0° |
| Seatpost | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
Compatibility
Compatible with Bosch PowerMore range extender batteries, interchangeable Bosch 600Wh PowerTube batteries, 40mm two-bolt kickstands, and Universal Derailleur Hangers (UDH).
